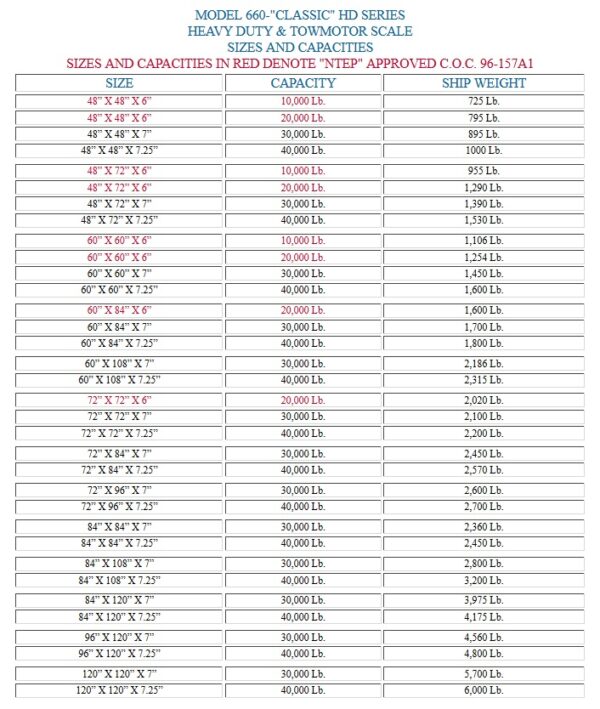

• 10,000 through 40,000 Lb capacities
• Cross strutted structural tubular steel construction.
• 1/2 inch thick smooth carbon steel deck plate.
• Four internally mounted, IP 67 rated water resistant load cells.
• Stainless steel self checking, captive ball leveling feet.
• Stainless steel NEMA 4x junction trim box.
• Top access leveling.
• Durable urethane enamel paint.
• 20 foot shielded indicator cable.
• Eye bolt holes for easy setup and moving.
Underside view of the 660-“Classic” HD showing the cross strutted tubular steel construction. This design, coupled with a one half inch thick steel deck plate, make this scale a true heavy weight able to handle the unique loading characteristics of towmotor traffic.
